Open-Type Variable Autotransformer for Floor Mounting 3ph (2~20A)

Please select your current rating option from the dropdown below

Quantity Your Price
1 - 1 (pcs)£141.00
2 - 2 (pcs)£132.00
3 or more (pcs)£124.00

23 in stock

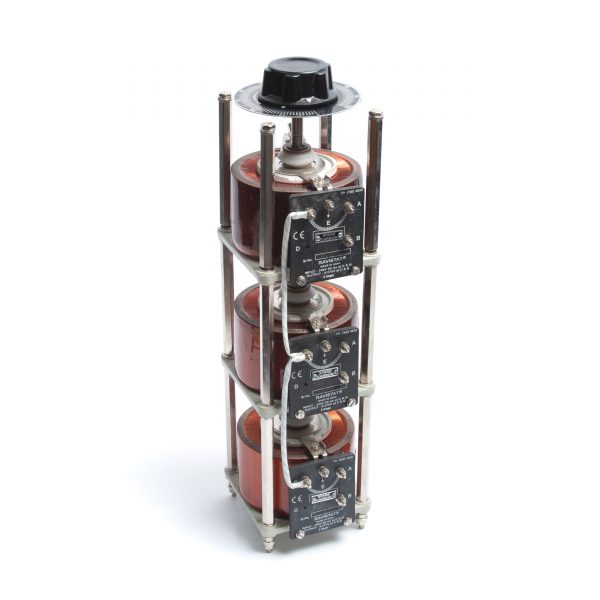

RAVI 2F-3 Variable Autotransformer; Panel Mounted 415V 0…470V 2 Amps 50/60Hz 3ph

SKU: RAVI 2F-3 SKU: RAVI 6F-3 SKU: RAVI 10F-3 SKU: RAVI 20F-3
Category:

Product Description

Three-phase open-type variable autotransformer (variac).

415V 50 Hz input and 0…470V 50 Hz output.

High efficiency with high quality and long life wiper design.

No output voltage distortion.

Ambient temperature range from -10 °C to +45 °C.

Low power losses.

Fully protected from overload and short circuits.

Three-phase open-type variable autotransformer (variac).

415V 50 Hz input and 0…470V 50 Hz output.

High efficiency with high quality and long life wiper design.

No output voltage distortion.

Ambient temperature range from -10 °C to +45 °C.

Low power losses.

Fully protected from overload and short circuits.

Three-phase open-type variable autotransformer (variac).

415V 50 Hz input and 0…470V 50 Hz output.

High efficiency with high quality and long life wiper design.

No output voltage distortion.

Ambient temperature range from -10 °C to +45 °C.

Low power losses.

Fully protected from overload and short circuits.

Three-phase open-type variable autotransformer (variac).

415V 50 Hz input and 0…470V 50 Hz output.

High efficiency with high quality and long life wiper design.

No output voltage distortion.

Ambient temperature range from -10 °C to +45 °C.

Low power losses.

Fully protected from overload and short circuits.

For full technical data contact our sales team

Specification

Input Voltage 415V 50/60Hz
Output Voltage & Current 0...470V AC
Dimensions 110 L x 140 W x 360 H mm
Weight (kg) 9.700
Current Output 2A max (1.8A cont.)
