SFS 5000 415-2-2
This product was made in the UK

SFS 415/110V 2ph Site Transformer 2 Sockets / 2 Cable Glands 5kVA Continuous

Quantity Your Price
1 - 1 (pcs)£294.00
2 - 2 (pcs)£273.00
3 or more (pcs)£252.00

SFS 415/110V 2ph Site Transformer 2 Sockets / 2 Cable Glands 5kVA Continuous

Out of stock

SKU: SFS 5000 415/2/2
Category:

Product Description

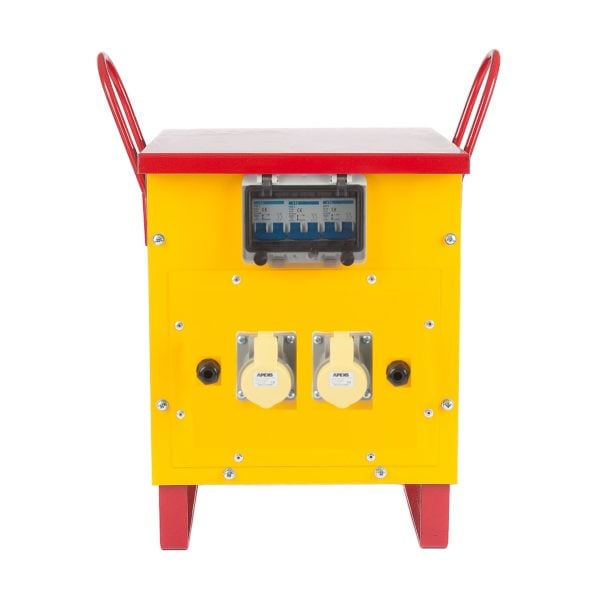

415V two-phase (2ph) site transformer.

5kVA continuous and 6kVA intermittent.

1 x 110V 16A socket, 1 x 110V 32A socket, and 2 x 20 mm cable glands for lighting applications.

Designed for a 400~415V 50 Hz 2ph input via 25 mm cable entry.

110V output centre tapped to earth (55/0/55V).

Full input protection via 2 pole MCB.

Output protection via type D double pole MCB.

IP44 output sockets designed to BS 4343.

Designed to EN 61558-1: 2005.

CE marked.

Image for illustration purposes only.

For full technical data contact our sales team

Specification

Input Voltage 400~415V AC 50 Hz 2ph
Output Voltage & Current 110V centre tapped to Earth
Weight (kg) 55.000
Current Output 1 x 16A and 1 x 32A
