Control Circuit Transformers

Our ex stock range of control circuit transformers offer you 219 of the most popular transformer combinations usually on a next day delivery. All of our stock transformers are expertly manufactured by ETE at our factory in Suffolk, UK, and meet the remarkably high standards synonymous with our name. This range consisting of single voltage (SV), dual-voltage (DV), multi-voltage (MV), and wide-input voltage (WV) control circuit transformers are perfect for panel builders, OEMs, and many other industrial and commercial applications.

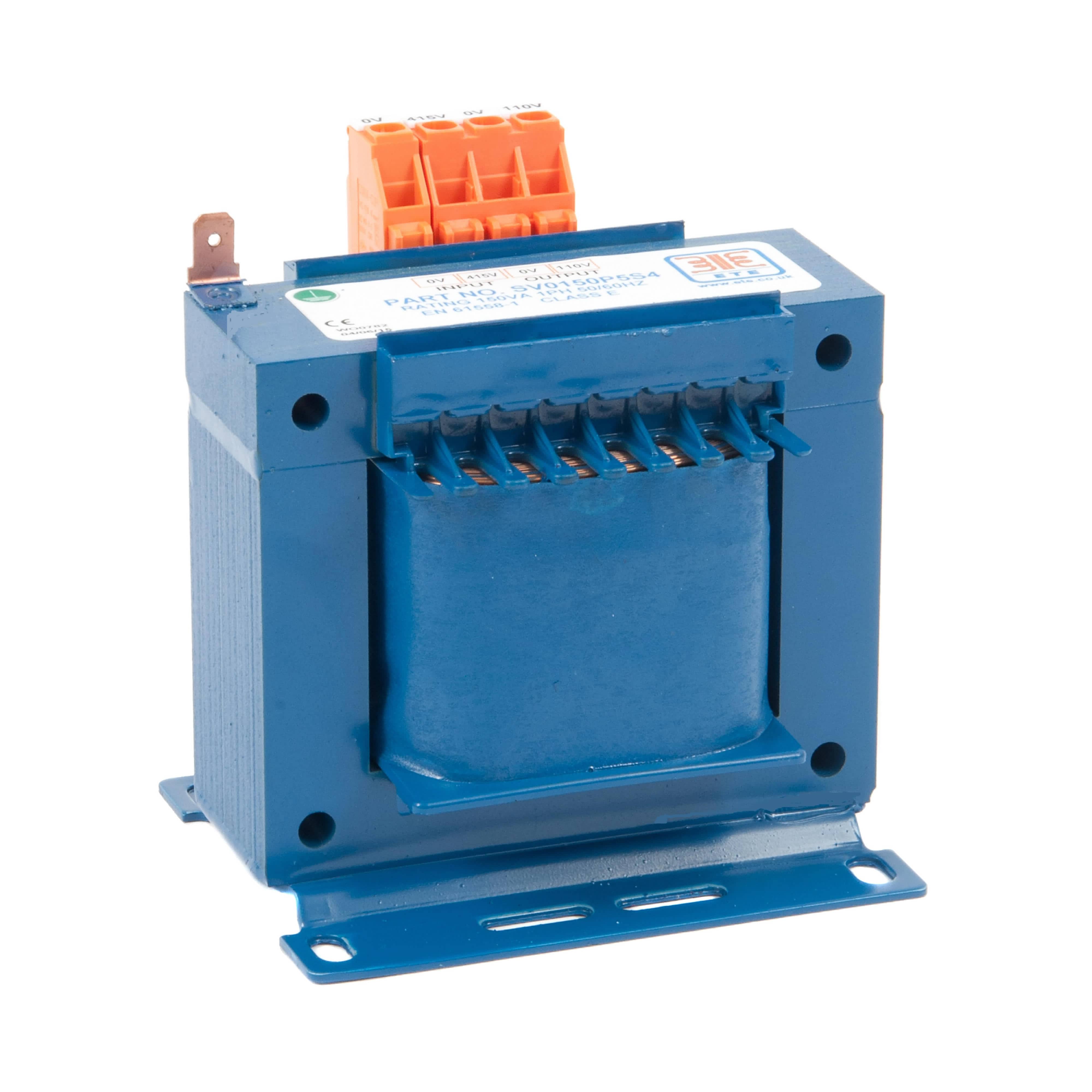

SV Range of Transformers

Single Voltage Input and Single Voltage Output Transformers
The SV range is our most popular and cost-effective range of stock transformers. Our SV transformers have one single voltage input and one single voltage output. The inputs are either 240V single-phase (1ph) or 415V two-wire (2ph) with output options of 24V, 110V, or 240V. Ratings range from 50VA through to 1kVA.

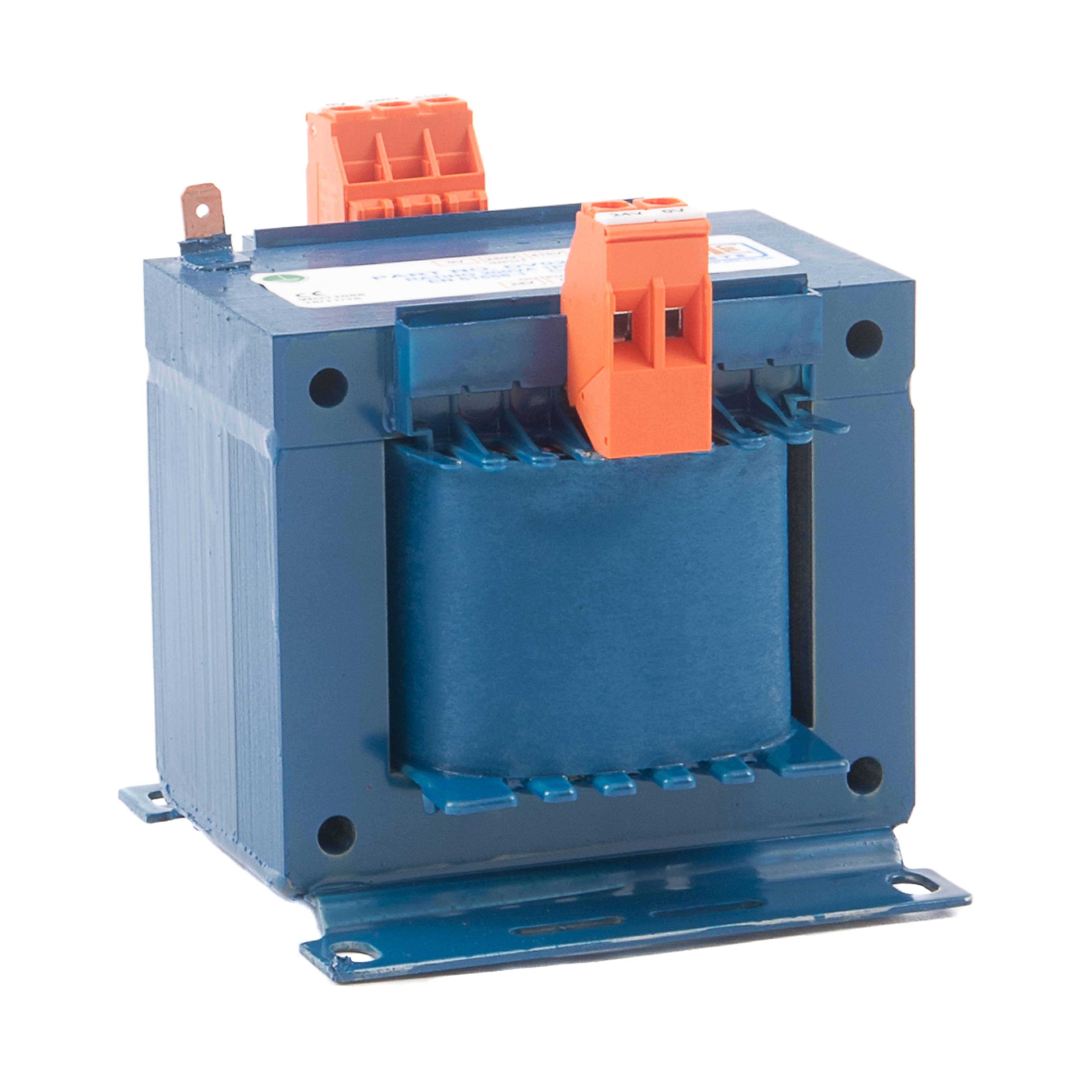

DV Range of Transformers

Dual Input Voltage and Single Output Voltage Transformers
The DV range is an adaption of our popular single voltage (SV) range. Our DV transformers have dual voltage inputs of 240V single-phase (1ph) or 415V two-wire (2ph) to suit the needs of most applications with one single output voltage. They are tapped at 0/240/415V with output options of 24V, 110V, or 240V. Ratings range from 50VA to 1kVA.

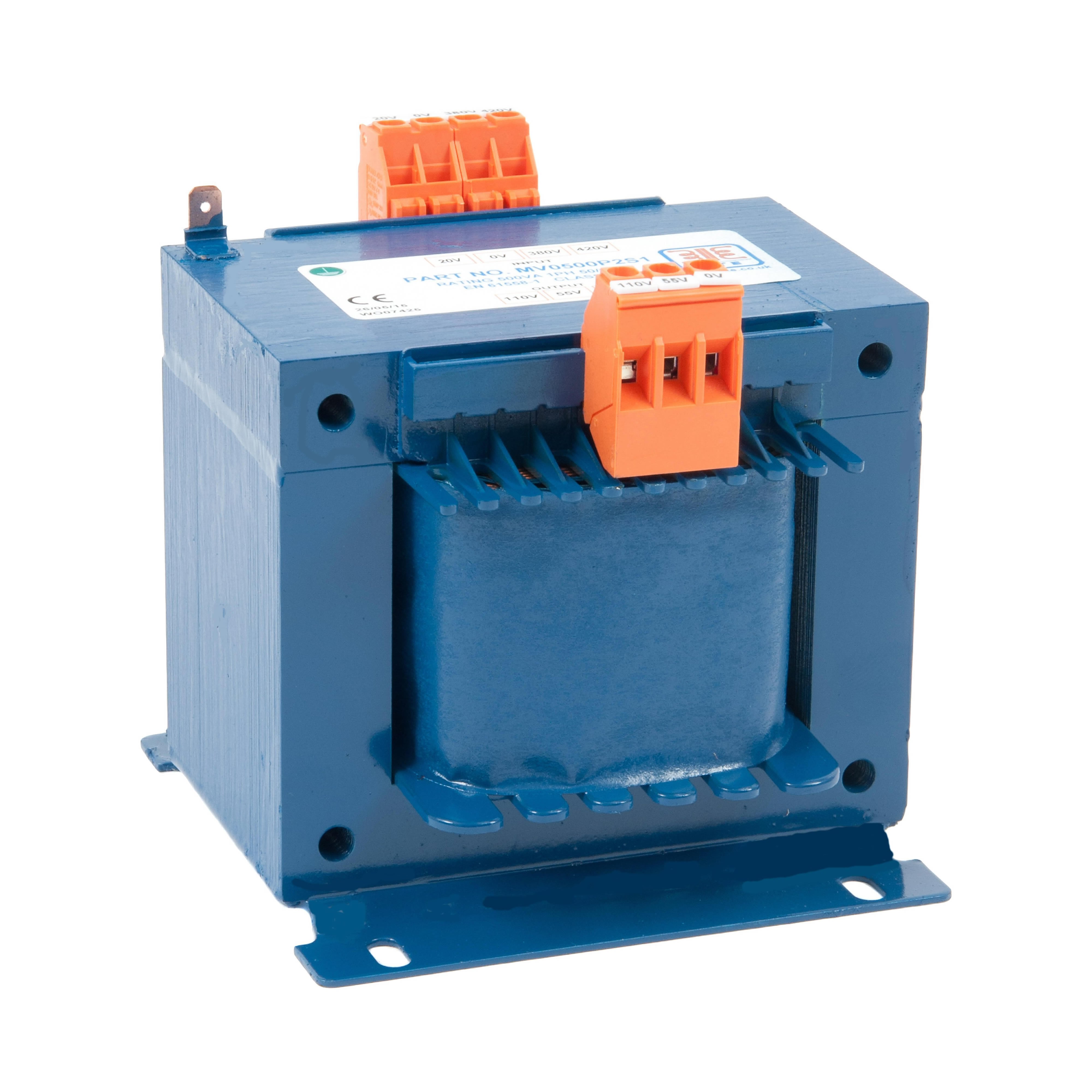

MV Range of Transformers

Multi-Voltage Input and Multi-Voltage Output Transformers
The MV range caters for wider variations in voltage inputs and outputs and helps to accommodate for a more extensive array of applications. Our MV transformers have multi-voltage inputs of either 10/0/220/240V, 20/0/380/420V, or 0/120V 0/120V for series or parallel connection. The output options are either 0/55/110V (55/0/55V) 110V centre tapped, 10/0/220/240V, or 0/12V – 0/120V, again, for series or parallel connection. Ratings range from 50VA to 7.5kVA.

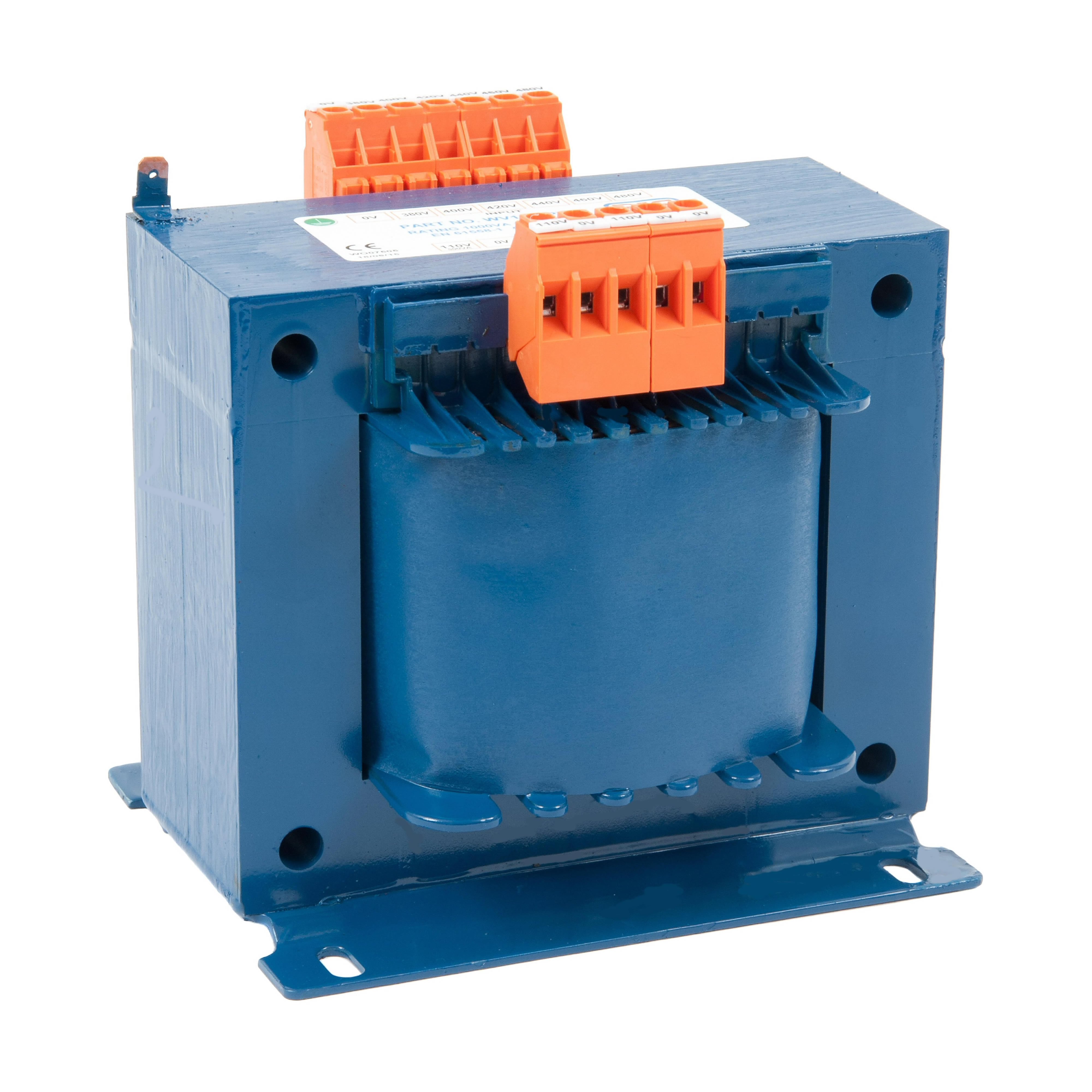

WV Range of Transformers

Wide Input Voltage and Dual Voltage Output for Series and Parallel Connection Transformers
The WV range is perfect for series or parallel connections. Our WV transformers have multi-voltage inputs of either 0/380/400/420/440/460/480V or 0/500/550/600/690V. The output options are either 0/24V 0/24V for 0/110/120V 0/110/120V. Ratings range from 50VA to 3kVA.
